Cell organelles and fluorescence of parenchyma cells in Eucalyptus bosistoana sapwood and heartwood investigated by microscopy



Eucalyptus bosistoana is currently investigated in New Zealand for its potential to produce naturally durable timber in short-rotation plantations. Little is known of heartwood formation in young trees. The objective of this study was to identify conventional and confocal microscopy methods which allow the observation of cell organelles and the chemical composition in the E. bosistoana parenchyma cells before and after heartwood formation.


Nuclei, microtubules and peroxisomes in parenchyma cells of 2-year-old E. bosistoana stems were visualised by confocal microscopy combined with optimised immunolabelling protocols. Sequential staining of the tissue with toluidine blue and iodine/potassium iodide identified different cell organelles in parenchyma cells of sapwood. Iodine/potassium iodide stained starch (amyloplasts), while amido black stained proteins in sapwood. Fluorescence emission spectra confirmed the presence of chloroplasts in parenchyma of 2-year-old E. bosistoana. Fluorescence emission spectral (lambda) scans showed differences between parenchyma and fibre cells as well as sapwood and heartwood.


Physiological changes between sapwood and heartwood were visualised in parenchyma cells. Labelling of cell organelles was challenging due to unspecific binding and high background signals. Understanding heartwood formation is critical for the success of a plantation forest industry aiming to produce ground-durable timber, as heartwood formation is variable.


Wood formation (xylogenesis) in vascular plants is a complex biological process that includes cell division from secondary vascular cambium, cell elongation and differentiation, secondary cell wall deposition, programmed cell death and heartwood formation (Plomion et al., 2001). Wood consists of living and dead cells forming symplasmic and apoplasmic networks in trees. The apoplasmic system contains tracheids, vessels, and dead fibres. The symplasmic system integrates the living parenchyma cells. These living parenchyma cells in the symplasmic system perform multiple roles in sugar transport and storage, embolism repair, defence against pathogens, and secondary modification of xylem cells (Nakaba et al., 2012).

Parenchyma refers to a tissue composed of living cells that varies widely by morphology and metabolism. Parenchyma cells are distributed throughout the plant body in different forms such as small clusters and strands or heterogeneously in tissues such as xylem and phloem (Pruyn & Spicer, 2012). In secondary vascular tissue, parenchyma cells are typically oriented radially and axially forming a three-dimensional interconnected network of living cells (Spicer, 2005, 2014).

Three distinct zones can be distinguished in the stems of older trees: sapwood, heartwood and a transition zone. Heartwood can be defined as an internal part of the stem, often darker in appearance than surrounding sapwood, devoid of living cells and water conduction, and in which the reserve materials (e.g. starch) have been removed. Some tree species additionally deposit heartwood substances imparting biotic resistance into this part of the stem (Bamber, 1964; Nakaba et al., 2012). Parenchyma cells remain alive for many years in the sapwood (Nakaba et al., 2011; Nakaba et al., 2008), retaining their intracellular organisation including organelles (nuclei, endomembranes, mitochondria, plastids, peroxisomes) and structural components such as the cytoskeleton (microtubules and actin microfilaments) (Fukuda, 2000; Funada, 2000; Spicer, 2005, 2014; Spicer & Holbrook, 2007). The transition zone is the boundary between sapwood and heartwood. This is normally a narrow, often pale-coloured zone surrounding the heartwood that contains living cells that are usually devoid of starch, impermeable to liquids and with a moisture content lower than sapwood (Taylor et al., 2002). The extension and generation of heartwood takes place from the transition zone (Déjardin et al., 2010).

Heartwood formation is a genetically and metabolically controlled programmed cell death process, which leads to the formation of heartwood extractives (Magel et al., 2001). In the transition zone, an increase in metabolic activity of parenchyma cells occurs followed by a series of cumulative events (rapid synthesis of secondary metabolites called extractives, blockages of conducting elements by formation of tyloses and structural changes in pits) preceding the death of the parenchyma cells (Spicer, 2005). The extractives formed by the living parenchyma cells in the transition zone are released and deposited in the neighbouring cells, imparting durability and colour in some species. It is postulated that heartwood formation regulates the amount and function of sapwood, controlling water transport and storage of reserve materials (Spicer, 2005). Despite the physiological importance of heartwood, the biological aspects of its formation are still not well understood.

Heartwood is also of economic importance as only heartwood is coloured or naturally durable. Variations in colour and natural durability are caused by biologic differences in heartwood formation and directly impact on timber value. This is in particular true for a hardwood industry based on fast-growing, short-rotation plantations. Such sustainably managed plantations have the potential to satisfy the existing demand for coloured and naturally durable timbers, which are currently often unsustainably or illegally sourced from virgin tropical forests. The New Zealand Dryland Forests Initiative (NZDFI) has identified this opportunity for New Zealand (Millen et al., 2018) and has engaged in a research programme to support the establishment of Eucalyptus bosistoana F.Muell., a Class 1 durable timber (Australian Standard, AS5604-2005), in New Zealand.

The purpose of the study was to (a) identify microscopy techniques that are able to detect changes in chemical composition as well as cell organelles in E. bosistoana sapwood and heartwood and (b) get a better understanding of the changes occurring after heartwood formation.

Materials and methods

Wood material and fixation

Wood samples were collected in summer (December) 2014 from E. bosistoana trees grown at two different sites in the South Island of New Zealand. Stem sections of 2-year-old trees were collected from a research trial in Christchurch, Canterbury. Ten-centimetre-thick stem discs from 11-year-old trees were collected at breast height near Havelock, Marlborough. Heartwood and sapwood were visually distinguished in the fresh state on the samples and marked with a pencil. Radial strips (~ 4 cm in tangential and ~ 2 cm axial direction) were cut from the green samples and chiselled along the grain into smaller pieces. Approximately 30 wood pieces were fixed in 1 L of cytoskeleton stabilisation buffer as described in Mishra et al. (2018). Radial sections (10–20 μm thick) were cut with a sledge microtome. Acetone treatment of tissue sections was performed at − 20 °C for 20 min and subsequently washed with distilled water in a beaker under gentle stirring for 15 min.


A Nikon Eclipse 50i microscope with a Nikon digital sight DS-5 MC camera was used in transmitted light and fluorescence modes. Radial sections were stained with iodine/potassium iodide (0.1% in water) to visualise starch grains, or amido black (0.2% in 7% acetic acid) to label proteins (Islam & Begum, 2012; Nakaba et al., 2012), or toluidine blue (0.1% in water). Sequential labelling with toluidine blue staining followed by potassium iodide was also used. Sections were mounted in glycerol.

Sections were stained with either Sudan IV (1% in 70% ethanol) (Begum et al., 2010) or Nile red (dissolved in 0.5% H2SO4) (Greenspan et al., 1985) to highlight lipid droplets. Protein stains such as Coomassie brilliant blue R-250 (0.25 g in 90 mL of methanol: distilled water (1:1, v/v) and 10 mL of glacial acetic acid) and Ponceau S (0.1% (w/v) in 5% acetic acid) as well as colour-based DNA stains such as acetocarmine (1% in acetic acid) (Islam & Begum, 2011; Nakaba et al., 2006) and methyl green pyronin (1% in acetate buffer solution comprised of glacial acetic acid and sodium acetate) (Potvin, 1979) were unsuccessfully used on sapwood and heartwood sections. Similarly, fluorescent DNA stains such as DAPI (4′, 6-diamidino-2-phenylindole) (1 μL in 999 μL distilled water) and propidium iodide (1 μL in 999 μL distilled water) and Syto-13 (1 μL in 999 μL distilled water) were found to be unreliable markers for living nuclei as these dyes bound to the cell walls and did not clearly resolve nuclei.

Immunofluorescence microscopy

Sections were labelled against monoclonal antibodies to visualise microtubules (mouse anti-α-tubulin, clone B512, Sigma-Aldrich, St Louis, MO, USA), nuclei (histone proteins or anti-histone H3, catalogue number 07-690, Merck Millipore, Billerica, MA, USA) and peroxisomes (rabbit polyclonal anti-cottonseed catalase, courtesy of Dr. Richard Trelease, University of Arizona) (Kunce et al. 1988). The sections were observed with a Leica SP5 confocal microscope system operating on a DMI6000 inverted microscope with × 20 NA 0.7 and × 63 NA 1.3 glycerol immersion lenses (Leica, Wetzlar, Germany) after applying fluorescein and Cy5 labelled secondary antibodies. The secondary antibodies used were mixtures of either goat anti-rabbit-Cy5 (Jackson Immunoresearch, West Grove PA, USA) and sheep anti-rabbit-fluorescein (Silenus, Boronia, Vic, Australia) or goat anti-mouse-Cy5 (Jackson Immunoresearch) and sheep anti-mouse-fluorescein (Silenus). The detailed procedure was described by Mishra et al. (2018).

For immunolocalisation of nuclei, sections were post-fixed with FAA solution (10% (v/v) formaldehyde, 5% (v/v) acetic acid and 50% (v/v) ethanol) overnight. This step, based on Nic-Can et al. (2013), reduced the background fluorescence and promoted antibody binding. Samples not post-fixed with FAA showed minimal labelling with the antibody. Primary antibody controls were also negative.

Confocal microscopy

Variations in the colour of autofluorescence from wood samples, different cells and organelles were detected by recording fluorescence emission spectra using excitation wavelengths of 405 and 488 nm. Emissions were collected from 420 to 700 and 500 to 700 nm, respectively. Image intensities from organelles, parenchyma or from selected fibre cells were quantified using the ImageJ software (FIJI version 1.47v, National Institute of Health, Bethesda, MD, USA) using the ‘Plot Z axis profile’ function.

Results and discussion

A range of cytological features associated with the transition of living parenchyma cells in sapwood to dead cells in heartwood were investigated by microscopy in radial wood sections collected from 2-year-old and 11-year-old E. bosistoana trees.

Histochemical observations

Three different histochemical stains labelled living parenchyma. Starch, which is localised in amyloplasts, was detected as black granules with iodine/potassium iodide stain. Starch labelling was present in the radial (white arrows, Fig. 1a) and axial (black arrows, Fig. 1a) parenchyma cells of sapwood but was absent from heartwood (Fig. 1d). This was consistent with previously described transitions of parenchyma cells in a variety of different angiosperm and gymnosperm species. The presence of starch was reported in sapwood and its absence from heartwood in Larix kaempferi (Lamb.) Carr. (Japanese larch) (Islam et al., 2012) as well as in Tectona grandis (L.f.) Lam. (teak) (Islam & Begum, 2011). Consistent with their observations, our results suggested that starch depletion in ray cells was associated with cell death.

Fig. 1

Histochemical staining of ray parenchyma in sapwood (top row) and heartwood (bottom row) from an 11-year-old E. bosistoana tree. Starch granules were stained black with iodine/potassium iodide in radial (white arrows) and axial (black arrows) parenchyma of sapwood but were absent in heartwood (a, d). Proteins and vacuoles (arrows) were labelled bluish-black with amido black in sapwood but were absent from heartwood (b, e). Vacuoles (arrows) labelled bluish with toluidine blue in parenchyma of sapwood but were absent or breaking down in heartwood (c, f). Round structures (arrows) in heartwood (d, e, f) were likely heartwood extracts synthesised in ray parenchyma cells. These round structures were not evident in sapwood. Scale bar 20 μm

The second histochemical stain used was amido black, which stained proteins a bluish-black colour. This showed that parenchyma cells in sapwood retained proteins indicating that they remained alive (arrows, Fig. 1b). The parenchyma in heartwood lacked proteins, which indicated that it had undergone cell death (Fig. 1e). Again, these observations matched literature reports. Islam and Begum (2012) investigated Artocarpus heterophyllus Lam. (jackfruit) and reported the presence of more protein in younger ray parenchyma cells than in ray parenchyma of older wood. Their results suggested that disappearance of proteins in ray cells was associated with cell death, which coincided with our observations. Similar observations were also reported by Datta and Kumar (1987) concerning the presence of starch and proteins in parenchyma cells of inner and outer sapwood of T. grandis and their absence in heartwood. However, it needs to be taken into account that the starch and protein content in xylem was reported to vary among seasons and species (Begum et al., 2013; Nakaba et al., 2012). The lowest reserves are typically present in spring after bud flush and the highest during winter dormancy (Rossi et al., 2007; Rossi et al., 2008). Round structures in heartwood (arrows, Fig. 1d–f) sections were likely heartwood extractives synthesised in ray parenchyma cells that were not evident in sapwood (Fig. 1a–c). This was consistent with previously reported observations of polyphenols in ray parenchyma cells of Pinus densiflora Siebold & Zucc. and P. rigida Mill. (Nakaba et al., 2008).

The third histochemical stain was toluidine blue. This stained the vacuoles and other organelles of sapwood a bluish colour indicating that they were alive (arrows, Fig. 1c). No indications of vacuoles were observed in heartwood (Fig. 1f). Fukuda (2000) suggested that the collapse of the vacuoles could result in the release of hydrolytic enzymes that degrade cell organelles such as nuclei (Kuriyama & Fukuda, 2002). Disruption of vacuoles followed by disappearance of nuclei was observed in ray tracheids located further inside the stem of P. densiflora (Nakaba et al., 2011). The identification of the small organelles labelled by toluidine blue remains unclear. However, sequential staining of the same section with toluidine blue (arrows, Fig. 2a) followed by iodine/potassium iodide (arrows, Fig. 2b) confirmed that the toluidine blue-labelled organelles were distinct from the amyloplasts.

Fig. 2

Sapwood section from a 2-year-old E. bosistoana tree showing ray parenchyma imaged at the same location that had been stained sequentially with a toluidine blue and b potassium iodide. Arrows indicate examples of organelles showing differential staining. Scale bar 20 μm

Several other stains were also investigated but these did not provide good labelling in E. bosistoana. Stains for lipid droplets including Sudan IV, previously used in wood samples (Begum et al., 2010; Begum et al., 2013; Islam et al., 2012), and Nile red (Greenspan et al., 1985) failed to give good labelling. These observations suggest that unlike T. grandis (Islam & Begum, 2011) and Cryptomeria japonica (L. f.) D.Don. (Begum et al., 2010), lipid droplets were mostly absent from the parenchyma of E. bosistoana samples in summer. However, it needs to be taken into account that, similar to the starch and protein content, the lipid content in xylem has been reported to vary among seasons and species (Begum et al., 2013). Similarly, two protein stains that are more commonly associated with biochemistry than histochemistry, Coomassie brilliant blue R-250 and Ponceau S, failed to provide clear staining of ray parenchyma.


A significant problem for the analysis of E. bosistoana wood was the fact that the samples were autofluorescent at most wavelengths. This autofluorescence derived from at least three different sources.

The main source of autofluorescence was from the vacuoles in parenchyma cells which, in sapwood, were fluorescent at all wavelengths (arrows, Fig. 3b–d), but degraded in heartwood (Fig. 3f–h). The observations led us to use spectral imaging (lambda scanning) with excitation at 405 nm (Fig. 3i), 488 nm (Fig. 3j) and 561 nm (Fig. 3k), and with the emission spectra from the sapwood vacuoles quantified from 420 to 700 nm, 500 to 700 nm and 560 to 700 nm respectively. The observations showed that emission spectra were shifted to longer wavelengths as excitation wavelength increased. Fluorescence peaked at 508 nm using 405 nm excitation, at 575 nm for 488 nm excitation and at about 640 nm for 561 nm excitation.

Fig. 3

Wide-field fluorescence microscopy showed vacuole autofluorescence from ray parenchyma in sapwood (top row) and heartwood (bottom row) from an 11-year-old E. bosistoana tree. Images confirmed that wood samples were strongly autofluorescent at all visible wavelengths. Images were collected and processed with the same settings to demonstrate that heartwood cells were more fluorescent than sapwood using transmitted light (a, e), UV excitation (b, f), blue excitation (c, g), and green excitation (d, g). Scale bar 30 μm. Normalised fluorescence emission spectra (lambda scans) from vacuoles in radial parenchyma cells in sapwood using i 405 nm, j 488 nm and k 561 nm excitation. As excitation wavelength increased, emission peaks were shifted to longer wavelengths.

The second source of autofluorescence was from the cell walls of both the parenchyma and fibre cells. Fluorescence emission spectra of parenchyma and fibre cells of sapwood and heartwood indicated differences in chemical composition. Using 405 nm excitation, the emission spectra for fibre cells showed a peak in fluorescence at 480 nm in both sapwood and heartwood (Fig. 4a) whereas the emission peak for the parenchyma cell walls was at a longer wavelength of almost 488 nm in sapwood and at an even longer wavelength of 500 nm in heartwood (Fig. 4b). Using 488 nm excitation, the emission spectra for fibre cells showed a peak in fluorescence at 560 nm in both sapwood and heartwood (Fig. 4c) whereas the emission peaks for the parenchyma cell walls were at a longer wavelength in sapwood (565 nm) and heartwood (570 nm) (Fig. 4d). These observations showed that for 11-year-old E. bosistoana, the transition from sapwood to heartwood did not markedly change the fluorescence emission spectra of fibre cells, whereas the emission spectra for parenchyma cell walls showed consistent shift in the emission peak associated with changes in the cell wall after cell death.

Fig. 4

Fluorescence emission spectra from sapwood and heartwood sections using 405 nm excitation (a, b) and 488 nm (c, d) of fibre cells (a, c) and parenchyma cells (b, d). Heartwood spectra were shifted to slightly longer wavelengths, most noticeably for the parenchyma cells, indicating the presence of heartwood extractives

Variations in the location and intensity of the peaks were likely caused by the presence of extractives (Koch & Kleist, 2001; Nakaba et al., 2012). A solvent such as acetone has been shown to remove large parts of the extractives from E. bosistoana heartwood (Van Lierde, 2013). Spectral imaging was conducted to determine whether or not the compounds present within the cell wall might be extracted by solvents. Acetone treatments resulted in few differences between the fluorescence patterns of fibre cells (Fig. 5a) and ray parenchyma (Fig. 5b) in heartwood sections suggesting that the extractives dominating fluorescence of E. bosistoana heartwood were not significantly removed by the acetone treatment. While dried acetone extracted heartwood powder maintained a darker colour than extracted sapwood powder (data not shown), a contributing factor to the small differences in fluorescence observed here could have been that the fixation treatment of the wood during sample preparation also bound the extractive compounds to the cell walls.

Fig. 5

Fluorescence emission spectra from sapwood and heartwood sections with and without acetone wash using 405 nm excitation of fibre cells (a) and parenchyma cells (b). Heartwood spectra were shifted to slightly longer wavelengths. No difference between the fluorescence patterns of a fibre cells and b ray parenchyma in heartwood sections without and with acetone treatment were observed

Heartwood of 6-year-old E. bosistoana was reported to contain between 1 and 15% of ethanol-soluble material (Li & Altaner, 2018). No detailed description of the chemical composition of these extracts has been published. Catechin was observed to be a major compound in the heartwood of E. camaldulensis F. Muell (Benouadah et al., 2018), and more generally, heartwood extractives were reported to predominately be comprised of phenolic compounds, e.g. tannins (Hillis, 1972, 1991). Various tannins, e.g. ellagitannins and condensed tannins, have been described in the heartwood extracts of other Eucalyptus species (Hillis & Carle, 1960, 1962; Stewart et al., 1953; Taylor et al., 2002).

The third source of autofluorescence was present only in the sapwood of the 2-year-old trees. Sections showed a scattering of small organelles with red autofluorescence (arrows, Fig. 6a). The pigment was identified as chlorophyll and the organelles as chloroplasts because the pigment was extracted by methanol (Fig. 6b) and acetone washes, and as spectral analysis showed an emission peak at 680 nm (Fig. 6c). In contrast, no indications of chlorophyll were observed in heartwood of E. bosistoana trees close to the pith where the cells had undergone cell death (data not shown). This was consistent with other reports showing that chloroplasts can exist within sapwood, for example, similar observations of red, chlorophyll autofluorescence from xylem ray cells and pith of E. angustifolia and E. globulus (Dima et al. 2006). Also, similar observations of chloroplasts present in sapwood were reported by van Cleve and co-workers based on absorption spectra maxima at 432 nm and 664 nm in methanol extracts from leaves, bark and pith of poplar (Populus × canadensis) (van Cleve et al., 1993). Furthermore, chlorophyll content were shown to depend on the age of the stem and its exposure to light (van Cleve et al., 1993; Dima et al., 2006; Larcher et al., 1988; Maxwell & Johnson, 2000; Saranpää, 1988). Published reports also provide evidence for an age-dependant decrease in stem chlorophyll content in a wide range of tree species (Pfanz et al., 2002).

Fig. 6

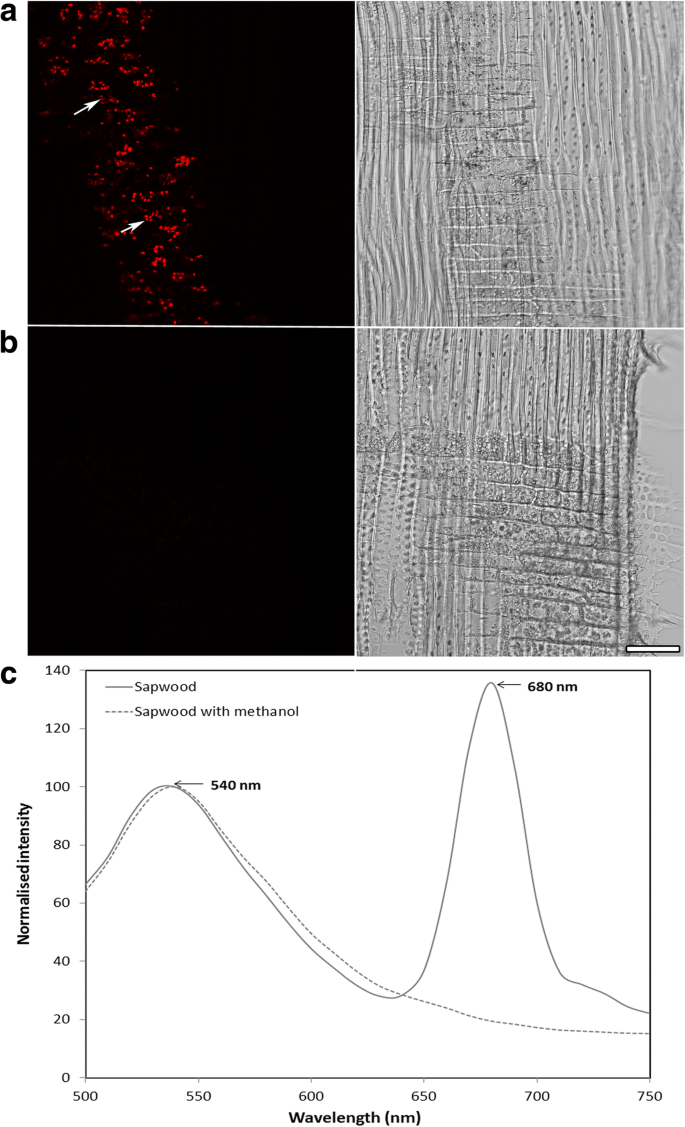

Sapwood contained chloroplasts. Concurrent confocal fluorescence (left) and transmitted light (right) images of sapwood sections treated without (a) and with methanol and b from a 2-year-old E. bosistoana tree. Ray parenchyma cells in sections that lacked the methanol treatment contained chloroplasts that fluoresced red using 488 nm excitation (arrows in a) but these organelles were not visible following methanol washes which indicated that the chlorophyll had been washed out (b). Scale bar 50 μm. Fluorescence emission spectra using 488 nm excitation from sapwood ray parenchyma treated without and with methanol (c)

Immunolocalisation of organelles and structures

Organelles and cytoplasmic structures of living parenchyma cells in sapwood of 2-year-old E. bosistoana trees were visualised by immunolabelling. Fixation, extraction and labelling procedures were based on conventional immunofluorescence imaging methods (Collings and Wasteneys, 2005) that were modified to work with radial wood sections. Immunolabelling was screened visually using fluorescence from fluorescein-tagged secondary antibodies, but the high autofluorescence at these wavelengths (Fig. 3) prompted the simultaneous use of two secondary antibodies, with confocal imaging conducted in the far-red with Cy5-tagged secondary antibodies.

Microtubules were visible as lines in and around the edges of both ray (white arrows, Fig. 7a) and axial (black arrows, Fig. 7a) parenchyma cells in sapwood and were absent from heartwood. These observations matched those of Nakaba and co-workers who reported microtubules in the outer xylem parenchyma cells of P. densiflora Siebold & Zucc. and Abies sachalinensis F.Schmidt. (Nakaba et al., 2006, Nakaba et al., 2008, Nakaba et al., 2013). Similarly, peroxisomes were immunolabelled in both the radial (white arrows, Fig. 7b) and axial (black arrows, Fig. 7b) parenchyma of sapwood. These peroxisomes were small, round organelles that were less than 2 μm in diameter and were abundant in the parenchyma. They too were absent from heartwood. Peroxisomes act as a source of enzymes such as polyphenol oxidases or peroxidases that contribute to the oxidation of phenolic heartwood compounds in Juglans nigra L. resulting in the brown colour of its heartwood (Dehon et al., 2002). Phenolic compounds are also common in heartwood extracts of Eucalyptus species (Da Costa & Rudman, 1958; Hart & Hillis, 1974; Hathway & Seakins, 1959; Hillis, 1956, 1991; Taylor et al., 2002).

Fig. 7

Immunolabelling allowed visualisation of organelles in living ray (white arrows) and axial (black arrows) parenchyma cells of sapwood from a 2-year-old E. bosistoana tree. Images are maximum projections of confocal optical sections using 633 nm excitation of Cy5 and collected between 650 and 700 nm where background autofluorescence was less severe. No labelling was seen in heartwood sections nor in primary antibody controls. Microtubules (arrows) labelled with mouse monoclonal anti-α-tubulin antibodies (a). Peroxisomes (arrows) labelled with rabbit polyclonal anti-catalase antibodies (b). Nuclei (arrows) labelled with rabbit polyclonal anti-histone antibodies (c). Scale bar 50 μm

Conventional nuclear stains failed in these E. bosistoana sections. Colour-based DNA stains such as acetocarmine and methyl green pyronine did not work well because they caused too much background signal. Similarly, fluorescent DNA stains such as DAPI (4′, 6-diamidino-2-phenylindole), propidium iodide and Syto-13 were unreliable markers for living nuclei as these dyes bound to the cell walls and did not clearly resolve nuclei. Instead, nuclei were labelled with antibodies against the H3 histone protein (Nic-Can et al., 2013). The use of this antibody was complex, with samples requiring post-fixation in FAA for the histone antigen to become immunoreactive. Nuclei were observed in both ray (white arrows, Fig. 7c) and axial (black arrows, Fig. 7c) parenchyma cells of sapwood. The presence of nuclei indicated that parenchyma cells remained alive in the sapwood. Similar observations were reported for Populus sieboldii L. × P. grandidentata L. and Abies sachalinensis F. Schmidt. (Nakaba et al., 2012, Nakaba et al., 2013).


Cell organelles and storage materials could be visualised in the living parenchyma cells in sapwood of 2-year-old E. bosistoana trees by immunolabelling and conventional histochemical staining. Extractives were localised in heartwood of 11-year-old E. bosistoana trees. It has been shown in this study that it is possible to use microscopy with appropriate staining to study physiological processes during heartwood formation. However, autofluorescence and unspecific staining made the use of several common staining techniques impractical. Investigating heartwood formation will aid the development of a hardwood industry based on E. bosistoana, which needs to ensure consistent wood properties. Early selections for heartwood in breeding programmes (Li et al., 2018) rely on the correct identification of fully developed heartwood (Mishra et al., 2018). Silvicultural practices and site influences on heartwood formation have been reported and need to be understood.



4′, 6-Diamidino-2-phenylindole


Deoxyribonucleic acid


Formaldehyde–acetic acid–ethanol
