Effect of logging wounds on diameter growth of beech (Fagus orientalis Lipsky) trees following selection cutting in Caspian forests of Iran
© Tavankar et al. 2015
Received: 15 March 2015
Accepted: 11 October 2015
Published: 29 October 2015
Logging damage to residual trees during selection cutting may lead to serious economic losses in terms of both timber quality and diameter growth reduction. In this study, we investigated the effect of logging operations on residual tree damage and the consequence of injuries on diameter growth in an uneven-aged mixed forest dominated by beech (Fagus orientalis Lipsky).
The diameter growth of 56 wounded and 56 unwounded beech trees were compared 12 years after selected logging of other trees had taken place in an Iranian Caspian forest.
Of total logging wounds, 25.0 % (14 wounds) were caused by felling operations and 75.0 % (42 wounds) were caused by winching operations. The reduction in diameter growth of wounded beech trees was only observed in the breast height DBH range below 55 cm. The diameter growth of wounded trees was 8.1 % lower than in unwounded trees. The vertical distance from the ground of wounding was a significant factor in diameter growth. Wounds that were larger than 200 cm2 in area significantly reduced diameter growth of beech trees. Whether wounds were closed or open wounds had no significant effect on diameter growth but decayed wounds reduced diameter growth by 15.3 %.
This study suggested that intensive logging wounds reduce diameter growth, especially in young beech trees. In addition to the intensity, size and position of wounds and tree age, the reduction of diameter growth was related to the ratio of wound size to stem area.
KeywordsFagus orientalis Lipsky Felling Logging damage Tree growth Winching
Impact on residual trees and/or to the regeneration of forest after forest harvesting continues to be one of the major concerns of forest managers responsible for implementing selection harvests (Reisinger and Pope 1991; Smith et al. 1994; Nikooy et al. 2010). The reduction of the negative effects of felling and extraction is one of the main goals when achieving sustainable forest management (Sist and Nguyen-Thé 2002). Skinned bark and exposed sapwood, root damage and broken branches are the most common forms of damage occurring during forest logging (Vasiliauskas and Stenlid 2007). When the bark is torn from living trees, physiological changes and cell differentiation occur in the area surrounding the injury and callus starts to develop from the living bark towards the centre of the wound (Neely 1979). Stem wound and root damage are also potential means of entry for organisms causing decay and pitch rings (Shigo 1966; Pechmann 1974; Dimitri 1983). Because of potential decreased tree vigour and increased likelihood of attack by insects or diseases, logging injury to the remaining trees may lead to serious economic losses in terms of timber quality at the final harvest (Kiser 2011), wood losses of damaged trees and tree growth reduction (Ohman 1970; Vasiliauskas 2001).
Several studies on logging damage have highlighted that a number of factors affect the susceptibility to and effect of mechanical injury. These include the following: tree species (Bettinger and Kellogg 1993; Vasiliauskas 2001), silvicultural treatment (Bettinger et al. 1998), logging season (Limbeck-Lilienau 2003), logging methods (Bragg et al. 1994; Spinelli et al. 2010; Marchi et al. 2014), harvesting system (Han and Kellogg 2000), site characteristics (Sist et al. 2003), amount of timber removed during harvest (Fjeld and Granhus 1998; Gullison and Hardner 1993), design of the extraction trails (Gullison and Hardner 1993), and skill of the personnel operating the equipment (Wallentin 2007; Nikooy et al. 2010). The effect of damage on tree growth has been also investigated showing contrasting results. Some studies clearly indicated that growth losses occur in damaged trees, and in some cases, these can seriously offset the gains from harvesting (Vasiliauskas 2001). Shea (1961) recorded a reduction in diameter growth in injured Douglas-fir (Pseudotsuga menziesii (Mirb) Franco). Isomäki and Kallio (1974) verified a decrease by 35–40 % in both radial and height growth in Norway spruce (Picea abies (L.) H. Karst.) trees with root collar damage following logging and a 15 % reduced growth due to stem damage. Other studies showed stem wounds in Norway spruce may result in growth rate losses ranging from 14 to 25 % (Baader 1956; Vanek 1957). In contrast, Vasiliauskas and Stenlid (2007) recorded an increase in radial growth in injured stems of ash (Fraxinus excelsior L.). Finally, a number of investigations failed to reveal any significant effect of stem wounds on the increment of Norway spruce (Vasiliauskas 1994), western hemlock (Tsuga heterophylla (Raf.) Srag.) (Shea 1961), oak (Quercus robur L.) (Vasiliauskas 1998) and Corsican pine Pinus nigra subsp. salzmanniivar. corsicana (Loudon) Hylander (as Pinus laricio Poiret) (Picchio et al. 2011). It is difficult, therefore, to make a general conclusion on what effect mechanical stem damage has on tree growth (Vasiliauskas 2001). Also, most of the studies on this topic are quite dated, mainly related to conifer species and, most importantly, approach the effect of damage on tree growth taking into consideration the effect of damage caused by animals rather than logging. Studies on this topic are still limited, especially in broadleaved stands, and the long-term effects of damage are not well known (Mäkinen et al. 2007). In order to improve logging methods, a better knowledge about the long-term impact of forest operations is needed (Whitman et al. 1997; Tavankar and Bonyad 2014).
Beech is the most industrial commercial tree species among more than 80 broadleaved trees and shrubs in the Caspian forests (Marvie-Mohadjer 2006). Pure or mixed oriental beech stands represent the most important forest communities in the natural Caspian forests (Marvie-Mohadjer 2006). These stands constitute approximately 17.6 % of the area, 30 % of standing volume and 23.6 % of stems number in the Iranian Caspian forests (Amiri et al. 2013).
In this study, we investigated the effect of a logging operation on residual tree damage and the consequence of injuries on diameter growth in an uneven-aged mixed forest dominated by beech in the Caspian forest of Iran. In detail, the aims of this study were the following: (i) to assess the long-term effects of logging damage on both diameter growth and wound condition after 12 years since logging and (ii) to analyse the relation of intensity, size and location of injuries with beech diameter growth.
This study was conducted in parcel 35 in district 1 of Nav forests, located between 37°38′34′′ to 37°42′21′′ N and 48°48′44′′ to 48°52′30′′ E. Elevation in the study area ranged from 950 to 1350 m a.s.l. The mean annual precipitation is approximately 950 mm, and the mean annual temperature is 9.1 °C. The original vegetation of this area is an uneven-aged mixed forest dominated by Fagus orientalis Lipsky. The soil type is forest brown, and texture varies between sandy clay loams to clay loam. The silvicultural method applied in this forest is single selection cutting. Logging operations in the area were carried out in December 1999 and January 2000. In total, 216 marked trees (6.75 trees ha−1) were scattered in the parcel area (32 ha), and these have a volume of 688 m3 (21.5 m3 ha−1). The diameter at breast height (DBH) of the marked trees ranged from 20 to 135 cm. The marked trees were felled, limbed and topped at 20 cm dib (diameter inside bark) by chain saw. Logs, ranging from 5.2 to 7.8 m in length, were then extracted from the felling site to the roadside landings using a Timber-jack 450 C wheeled skidder. The weight of the skidder was 9.8 t, and its width and length were 3.8 and 6.4 m, respectively.
Data collection and analysis
Where RDG is reduction of diameter growth, UDG is unwounded diameter growth and WDG is wounded diameter growth.
After checking for normality (Kolmogorov–Smirnov test) and homogeneity of variance (Levene test), a paired t test was applied to compare means of diameter growth (DG) in wounded and unwounded trees.
A non-parametric test (Spearman) was applied to test the relationship between the following: DBH vs. wound severity, wound position vs wound severity, wounded area vs. wound severity, wounded area vs. wound position, and wound position vs. DBH.
Regression analysis was applied to test the following relationships between: (i) diameter growth and tree age for both damaged and undamaged trees; (ii) wound size and tree diameter at the time of logging; (iii) diameter growth and wound position; and (iv) reduction of diameter growth and ratio of wound size to stem area. All analyses were performed using SPSS 19 software (IBM, NY, USA).
Results and discussion
Frequency of wounds by cause of wound
Cause of wound
Picchio et al. (2012) studied improved winching techniques designed to decrease stand damage in the forests of central Italy. They reported that the use of a snatch block decreased by one-quarter the frequency of wounded trees from 50 to 36 %.
Frequency of wounds for each DBH class by cause of wound
Cause of wound
Results of Spearman correlation analysis
DBH vs. wound severity
DBH vs. wound position
Wound size vs. wound position
Wound size vs. wound severity
Wound position vs. wound severity
Mean ± SD of diameter growth of unwounded, wounded and reduction of diameter growth (RDG) of beech trees 12 years after wound occurrence in related to wounds characteristics
Wound position (m)
6.63 ± 1.8
5.92 ± 1.8
6.66 ± 0.6
6.06 ± 1.4
6.35 ± 2.2
6.45 ± 0.9
Wound size (cm2)
5.96 ± 1.1
5.93 ± 0.9
6.25 ± 1.2
6.20 ± 1.0
7.36 ± 1.5
5.21 ± 2.1
6.74 ± 0.9
6.72 ± 0.9
6.50 ± 0.9
6.46 ± 1.1
6.60 ± 1.1
5.73 ± 1.4
6.72 ± 0.8
6.60 ± 1.0
6.67 ± 1.0
5.88 ± 1.4
6.54 ± 1.0
5.54 ± 1.5
6.59 ± 1.65
6.05 ± 1.54
Wound size is one of the most important characteristics related to decay (Hunt and Krueger 1962; Han and Kellogg 2000). As found also by Vasiliauskas (2001), most of the resulting wounds occur near the base of the tree and are up to 200 cm2 in size. Since logging injury usually occurs on the lower parts of trunk, wound decay in a tree affects the most valuable timber (Picchio et al. 2011; Tavankar et al. 2013).
Of all wounds recorded on beech trees, 55.3 % (31 wounds) occurred at a height lower than 0.3 m from the ground, 26.8 % (15 wounds) occurred between 0.3 to 1 m height and 17.9 % (10 wounds) occurred at a height higher than 1 m.
The results of this study indicated that most skidder-logging wounds (55.3 %) occurred in the near ground level of the bole (< 0.3 m) and were associated with a 10.7 % reduction in diameter growth relative to unwounded trees. The location of wounds from ground-based logging operations observed in this study is consistent with results from other published studies (Naghdi et al. 2008; Tavankar et al. 2011). The higher incidence of damage near the base of the tree is important because the butt log is generally the most valuable log in a tree (Bettinger and Kellogg 1993). Han and Kellogg (2000) suggested that artificial tree protection rigging such as rub pads along extraction corridors should be used to prevent damage on stump and stems.
Twelve years after the trees were wounded, 37.5 % of wounds were completely healed, 32.1 % were still open and 30.4 % were decayed. Trees with decayed wounds showed significant reduced diameter growth in comparison with undamaged ones (P < 0.01).
(R 2 adjusted = 0.162; SE = 1.521)
Where DG is the diameter growth of tree (mm year−1), and TC is the tree condition (0 for unwounded and 1 for wounded).
Diameter growth of wounded trees was lower than for unwounded trees in small trees (DBH < 55 cm), and the greater the tree diameter the smaller the differences. Thus, growth of wounded and unwounded trees was similar when DBH was greater than 55 cm.

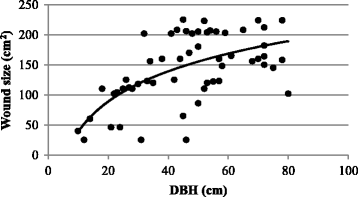

(R 2 adjusted = 0.373; SE = 45.37)
Where WS is the wound size. Only 37.3 % of the variability of the wound size was explained by DBH.
Where DG is diameter growth (mm.year−1) and WP is wound position (m) from the ground level.
This result suggests that the severity of wounds increased with decreasing height from ground level and/or due to an increased likelihood of pathogen attack in wounds close to ground level.
(R 2 adjusted = 0.51; SE = 4.62)
Where RDG is the reduction of diameter growth and RWS is the ratio of wound size to stem area.
This study evaluated the effect of logging wounds on diameter growth of standing beech trees in the Caspian forest 12 years after selection logging. Pre-harvest planning and identification of the winching area before logging operation commences can reduce damage to the standing trees in these forests. Also, skid-trail planning before a felling operation can reduce the skidding damage (Naghdi et al. 2008; Majnounian et al. 2009). The skidder and chain saw operators are important factors that can influence productivity and environmental impacts during logging operations. It has been reported that residual stand damage decreases substantially by careful planning and skilful operators (Cline et al. 1991; Pinard et al. 30). Nikooy et al. (2010) reported that skilled operation of a skidder can decrease the level of damage. So training of forest workers can be useful to reducing logging damage to the residual stand. All workers should be made aware of the purpose of the selection cutting and that both minor and major injuries to the residual stands as well as excessive ground disturbance may result in significant volume losses (Davis and Nyland 1991) and natural regeneration of the forest (Picchio et al. 2012).
This study shows that logging wounds cause a substantial reduction (8.1 %) in diameter growth of residual trees left after a selective logging operation. Our results showed that the effect of bole wounds on diameter growth depended on their severity, location and size, and tree age. Young beech trees were more sensitive to logging wounds. Residual stand damage is an unavoidable risk of selection cutting, but the level of damage should be minimised to assure quality timber from future harvests. The results of this study indicated also that tree extraction has a high potential for residual stand damage, and intensive wounds occurred during extraction operations. It is important to minimise damage, both to the number of trees damaged and the extent of damage to any individual tree.
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
- Amiri, M, Rahmani, R, Sagheb-Talebi, K, & Habashi, H. (2013). Dynamic and structural characteristics of a natural unlogged oriental beech (Fagus orientalis Lipsky) stand during a 5-year period in Shast Kalate forest, northern Iran. The International Journal of Environmental Resources Research, 1(2), 107–29.Google Scholar
- Baader, G. (1956). Damage by game in Rheinland-Pfalz and the possibilities to minimize it. Allgemine Forest Jagdztg, 127, 233–40.Google Scholar
- Bettinger, P, & Kellogg, L. (1993). Residual stand damage from cut-to-length thinning of second growth timber in the Cascade Range of western Oregon. Forest Products Journal, 43, 59–64.Google Scholar
- Bettinger, P, Bettinger, KA, & Boston, K. (1998). Correlation among spatial and non-spatial variables describing a cut-to-length thinning site in the Pacific Northwest, USA. Forest Ecology and Management, 104, 139–49. doi:10.1016/s0378-1127(97)00250-8.View ArticleGoogle Scholar
- Bragg, W, Ostrofsky, W, & Hoffman, B. (1994). Residual tree damage estimates from partial cutting simulation. Forest Products Journal, 44, 19–22.Google Scholar
- Clark, DA, & Clark, DB. (1992). Life history diversity of canopy and emergent trees in a neotropical rain forest. Ecological Monographs, 62, 315–44.View ArticleGoogle Scholar
- Cline, ML, Hoffman, BF, Cyr, M, & Bragg, W. (1991). Stand damage following whole-tree partial cutting in Northern forests. Northern Journal of Applied Forestry, 8, 72–6.Google Scholar
- Davis, CJ, Nyland, RD. (1991). Designated skid trails: results after 18 years. American Society of Agricultural Engineers, ASAE winter meeting, December 17–20, 1991, Chicago Illinois. [Paper No. 917522].Google Scholar
- Dimitri, L. (1983). Wound decay following tree injury in forestry: establishment, significance and possibilities of its prevention. Forstwissenschaftliches Centralblatt, 102, 68–79.View ArticleGoogle Scholar
- Ezzati, S, & Najafi, A. (2010). Long-term impact evaluation of ground-base skidding on residual damaged trees in the Hyrcanian Forest, Iran. International Journal of Forestry Research, 1, 1–8. doi:10.1155/2010/183735.View ArticleGoogle Scholar
- Fjeld, D, & Granhus, A. (1998). Injuries after selection harvesting in multi-storied spruce stands—the influence of operating systems and harvest intensity. International Journal of Forest Engineering, 9(2), 33–40. doi:10.1080/08435243.1998.10702716.Google Scholar
- Gullison, R, & Hardner, J. (1993). The effects of road design and harvest intensity on forest damage caused by selective logging: empirical results and a simulation model from the Bosque Chimanes, Bolivia. Forest Ecology and Management, 59, 1–14. doi:10.1016/0378-1127(93)90067-W.View ArticleGoogle Scholar
- Han, HS, & Kellogg, LD. (2000). Damage characteristics in Young Douglas-fir stand from commercial thinning with four timber harvesting systems. Western Journal of Applied Forestry, 15, 27–33.Google Scholar
- Han, HS, Kellogg, LD, Fillip, GM, & Brown, TD. (2000). Scar closure and future timber value losses from thinning damage in western Oregon. Forest Products Journal, 50, 36–42.Google Scholar
- Hunt, J, & Krueger, KW. (1962). Decay associated with thinning wounds in young-growth western hemlock and Douglas-fir. Journal of Forestry, 60, 336–40.Google Scholar
- Isomäki, A, & Kallio, T. (1974). Consequences of injury caused by timber harvesting machines on the growth and decay of spruce (Picea abies L. Karst.). Acta Forest Fennica, 136, 1–25.Google Scholar
- Kiser, J. (2011). Histochemical and geometric alterations of sapwood in costal Douglas-fir following mechanical damage during commercial thinning. Silva Fennica, 45(4), 729–41.View ArticleGoogle Scholar
- Limbeck-Lilienau, B. (2003). Residual stand damage caused by mechanized harvesting systems. In T Steinmuller & K Stampfer (Eds.), Proceedings of high tech forest operations for mountainous terrain. 5–9 Oct. Schlaegl-Austro, 2003. Vienna: University of Natural Resources and Life Sciences.Google Scholar
- Majnounian, B, Jourgholami, M, Zobeiri, M, & Feghhi, J. (2009). Assessment of forest harvesting damage to residual stands and regenerations—a case study of Namkhaneh District in Kheyrud Forest. Journal of Environmental Sciences, 7(1), 33–44.Google Scholar
- Mäkinen, H, Hallaksela, AM, & Isomäki, A. (2007). Increment and decay in Norway spruce and Scots pine after artificial logging damage. Canadian Journal of Forest Research, 37, 2130–41. doi:10.1139/X07-087.View ArticleGoogle Scholar
- Marchi, E, Picchio, R, Spinelli, R, Verani, S, Venanzi, R, & Certini, G. (2014). Environmental impact assessment of different logging methods in pine forests thinning. Ecological Engineering, 70, 429–36. doi:10.1016/j.ecoleng.2014.06.019.View ArticleGoogle Scholar
- Marvie-Mohadjer, M. (2006). Silviculture. Tehran: Tehran University publishing.Google Scholar
- Naghdi, R, Rafatnia, N, Bagheri, I, & Hemati, V. (2008). Evaluation of residual damage in felling gaps and extraction routes in single selection method (Siyahkal forest). Iranian Journal of Forest and Poplar Research, 16(1), 87–98.Google Scholar
- Neely, D. (1970). Healing of wounds on trees. Journal of the American Society for Horticultural Science, 95, 536–40.Google Scholar
- Nikooy, M, Rashidi, R, & Kocheki, G. (2010). Residual trees injury assessment after selective cutting in broadleaf forest in Shafaroud. Caspian Journal of Environmental Sciences, 8(2), 173–9.Google Scholar
- Ohman, JH. (1970). Value loss from skidding wounds in sugger maple and yellow birch. Journal of Forestry, 68, 226–30.Google Scholar
- Pechmann, HV. (1974). The influence of thinning methods on the quality of timber. Forstarchiv, 45, 34–8.Google Scholar
- Picchio, R, Neri, F, Maesano, M, Savelli, S, Sirna, A, Blasi, S, Baldini, S, & Marchi, E. (2011). Growth effects of thinning damage in a Corsican pine (Pinus laricio Poiret) stand in central Italy. Forest Ecology and Management, 262, 237–43. doi:10.1016/j.foreco.2011.03.028.View ArticleGoogle Scholar
- Picchio, R, Magagnotti, N, Sirna, A, & Spinelli, R. (2012). Improved winching technique to reduce logging damage. Ecological Engineering, 47, 83–6. doi:10.1016/j.ecoleng.2012.06.037.View ArticleGoogle Scholar
- Pinard, MA, Putz, FE, Tay, J, & Sullivan, TE. (1995). Creating timber harvesting guidelines for a reduced impact logging project in Malaysia. Journal of Forestry, 39, 41–5.Google Scholar
- Reisinger, TW, & Pope, PE. (1991). Impact of timber harvesting on residual trees in a central hardwood forest in Indiana. Proceedings of 8th Central Hardwood Forest Conference, 1991 March 4–6, (pp. 82–91). Newtown Square, PA: U.S. Department of Agriculture, Forest Service, Northeastern Forest Experiment Station.Google Scholar
- Shea, KR. (1961). Deterioration resulting from logging injury in Douglas-fir and Western hemlock. [Forest Research Note, 36, 1–5]. Federal Way, WA, USA: Weyerhaeuser Company.Google Scholar
- Shigo, AL. (1966). Decay and discoloration following logging wounds on northern hardwoods. [USDA Research Paper, 47, 1–43]. Washington, DC: United States Department of Agriculture.Google Scholar
- Sist, P, & Nguyen-Thé, N. (2002). Logging damage and the subsequent dynamics of a dipterocarp forest in East Kalimantan (1990–1996). Forest Ecology and Management, 165, 85–103. doi:10.1016/s03781127(01)00549-1.View ArticleGoogle Scholar
- Sist, P, Sheil, D, Kartawinata, K, & Priyadi, H. (2003). Reduced-impact logging in Indonesian Borneo: some results confirming the need for new silvicultural prescriptions. Forest Ecology and Management, 179, 415–27. doi:10.1016/S0378-1127(02)00533-9.View ArticleGoogle Scholar
- Smith, HC, Miller, GW, & Schuler, TM. (1994). Closure of logging wounds after 10 years. USDA Tech Bull, 692, 1–6.Google Scholar
- Solgi, A, & Najafi, A. (2007). Investigating of residual tree damage during ground-based skidding. Pakistan Journal of Biological Sciences, 10, 1755–8. doi:10.3923/pjbs.2007.1755.1758.View ArticlePubMedGoogle Scholar
- Spinelli, R, Magagnotti, N, & Nati, C. (2010). Benchmarking the impact of traditional small-scale logging systems used in Mediterranean forestry. Forest Ecology and Management, 260, 1997–2001. doi:10.1016/j.foreco.2010.08.048.View ArticleGoogle Scholar
- Tavankar, F, & Bonyad, A. (2014). Long-term effects of logging damages on quality of residual trees in the Asalem Nav forest. Journal of Environmental Studies, 40(1), 39–50.Google Scholar
- Tavankar, F, Bonyad, A, & Majnounian, B. (2011). Investigation of damages to stand caused by selection cutting using skidding system in the Asalem-Nav forest, Iran. Journal of Environmental Studies, 37(3), 89–98.Google Scholar
- Tavankar, F, Majnounian, B, & Bonyad, A. (2013). Felling and skidding damage to residual trees following selection cutting in Caspian forests of Iran. Journal of Forest Science, 59(5), 196–203.Google Scholar
- Vanek, J. (1957). Study on the consequences of bark stripping damage caused by game in forest stands. Lesnictvi, 3, 59–78.Google Scholar
- Vasiliauskas, R. (1994). Wound healing rate and its influence spread of decay in spruce. Proceeding of the Lithuanian Forest Research Institute, 34, 207–12.Google Scholar
- Vasiliauskas, R. (1998). Patterns of wounding and decay in stems of Quercus robur due to bark peeling. Scandinavian Journal of Forest Research, 13, 437–41. doi:10.1080/02827589809383004.View ArticleGoogle Scholar
- Vasiliauskas, R. (2001). Damage to trees due to forestry operations and its pathological significance in temperate forest: a literature review. Forestry, 74, 319–36. doi:10.1093/forestry/74.4.319.View ArticleGoogle Scholar
- Vasiliauskas, A, & Stenlid, J. (2007). Discoloration following bark stripping wounds on Fraxinus excelsior. European Journal Forest Pathology, 28(6), 383–90. doi:10.1111/j.1439-0329.1998.tb01192.x.View ArticleGoogle Scholar
- Wallentin, C. (2007). Thinning of Norway spruce. PhD Thesis. Sueciae, Sweden: Acta Universitatis Agriculture.Google Scholar
- Whitman, AA, Brokaw, VLN, & Hagan, JM. (1997). Forest damage caused by selection logging of mahogany (Swietenia machrophylla) in northern Belize. Forest Ecology and Management, 92, 87–96. doi:10.1016/S0378-1127(96)03941-2.View ArticleGoogle Scholar
